CS29 is HACHILL’s 1–2 person Hybrid Outdoor Sauna at W1350 × D1300 × H2000 mm externally and W1274 × D1084 × H1924 mm internally. The catalog lists separate 4.5 kW stove and 3250 W infrared references.
The key comparison is CS04: it carries the same 1–2 person capacity and the same listed external and internal dimensions. That means size does not choose between the two models. Keep CS29 in the brief when the Hybrid heating is required; otherwise compare the conventional Cube model on CS04. Use the final approved order drawing for production and installation details.
Model
CS29
Current Site Product Type
Hybrid Outdoor Sauna
Catalog Capacity
1–2 Person
Catalog Heater References
Stove 4.5 kW / IR 3250 W
External Dimensions
W1350 × D1300 × H2000 mm
Internal Dimensions
Drawing Status
Final approved order drawing controls production and installation details
Read 4.5 kW and 3250 W as two catalog references attached to different heat routes. They are not evidence of a summed system rating, a shared controller, simultaneous operation, or a promise that both heating packages are included in every order. Those points belong in the ordered-configuration confirmation.
CS29 is the 1–2 person entry in the Hybrid range. Its W1350 × D1300 × H2000 mm envelope is smaller than the CS23 and CS21 Hybrid envelopes, so it is the first model to screen when the brief is explicitly Hybrid and does not require more than the 1–2 person catalog class.
Keep CS29 in review when: Hybrid is a defined requirement, the 1350 × 1300 mm product footprint fits the early plan, and the photographed interior is suitable for the intended use.
Compact size does not determine performance: Published specifications do not confirm easier delivery, faster heat-up, lower energy use, lower project cost, or reduced site clearances.
| Comparison | CS29 | CS04 |
|---|---|---|
| Product Type | Hybrid Outdoor Sauna | Outdoor Cube Sauna |
| Catalog Capacity | 1–2 Person | 1–2 Person |
| External Dimensions | W1350 × D1300 × H2000 mm | W1350 × D1300 × H2000 mm |
| Internal Dimensions | W1274 × D1084 × H1924 mm | W1274 × D1084 × H1924 mm |
| Heat Context | Stove 4.5 kW / IR 3250 W references | 4.5 kW recommended heater |
| Main Selection Question | Is Hybrid required? | Is the conventional Cube model sufficient? |
CS29 and CS04 already tie on the listed capacity and dimensions. The useful discriminator is therefore the required heating configuration.
Keep CS29: the project brief calls for Hybrid and the stove/infrared configuration will be defined for the order.
Compare CS04: the same 1–2 person class and same product envelope are acceptable, but Hybrid is not a requirement.
The published specifications do not indicate a difference in comfort, efficiency, usable space, or heat-up speed.
CS23 is the next Hybrid capacity class when 1–2 Person is insufficient. CS29 is W1350 × D1300 × H2000 mm; CS23 is W1930 × D1300 × H2100 mm. Both keep a 1300 mm external product depth, while CS23 adds width and moves to the 2–4 person catalog class.
The shared 1300 mm number is useful only as a product-depth comparison. It does not mean CS29 and CS23 share the same installed clearance, foundation, access path, ventilation allowance, or assembly space. Use CS23 when the brief needs more Hybrid capacity; use site-specific requirements separately.

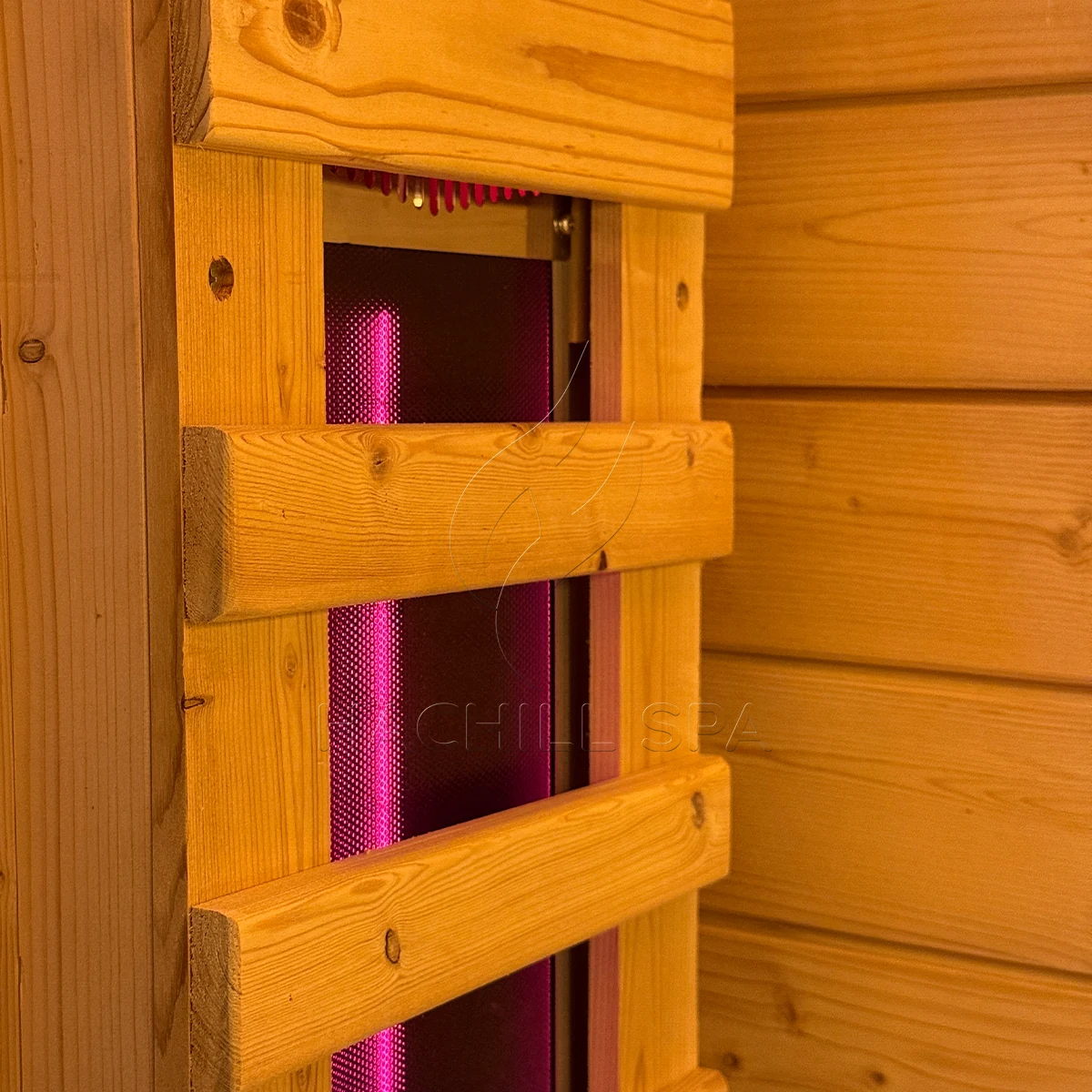

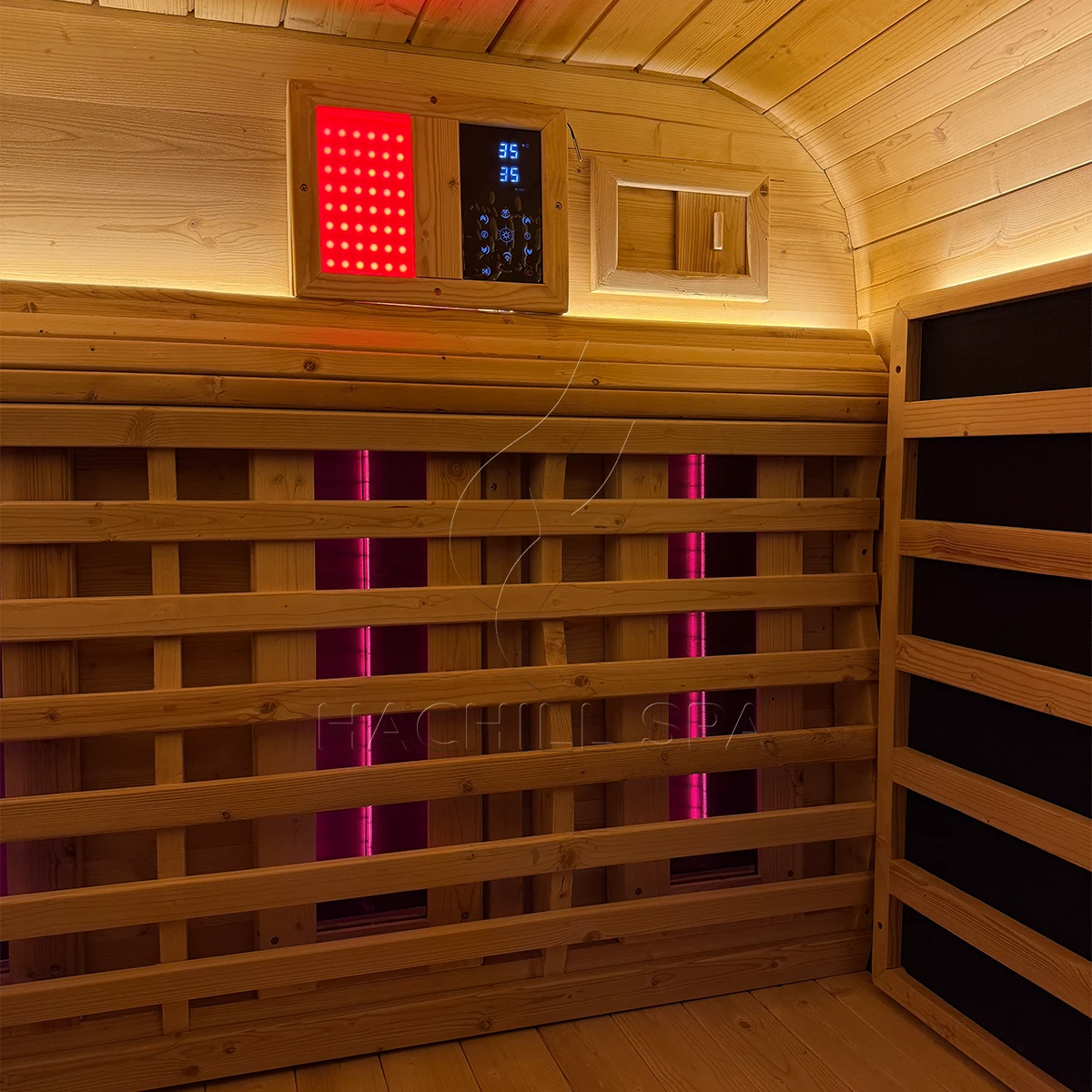

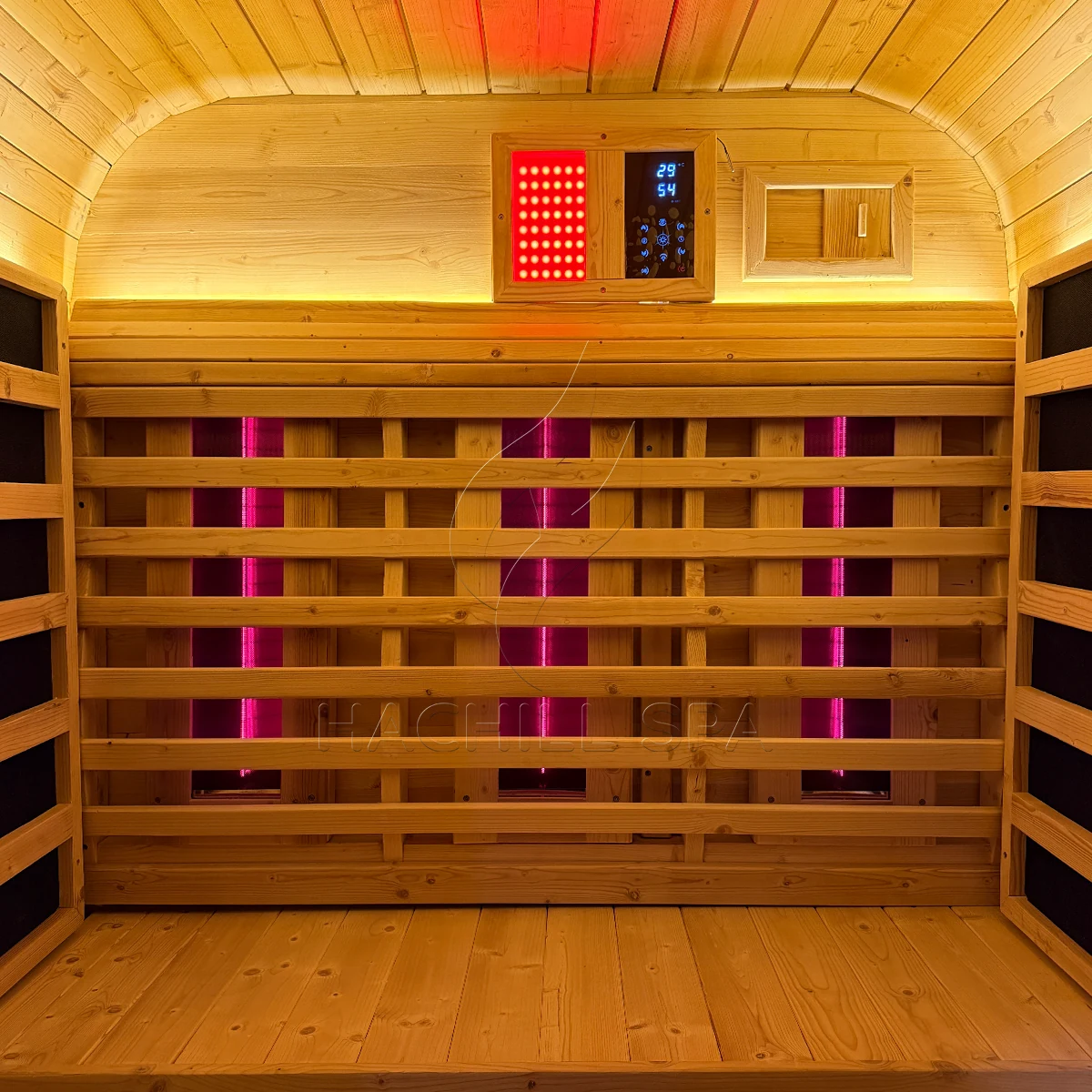

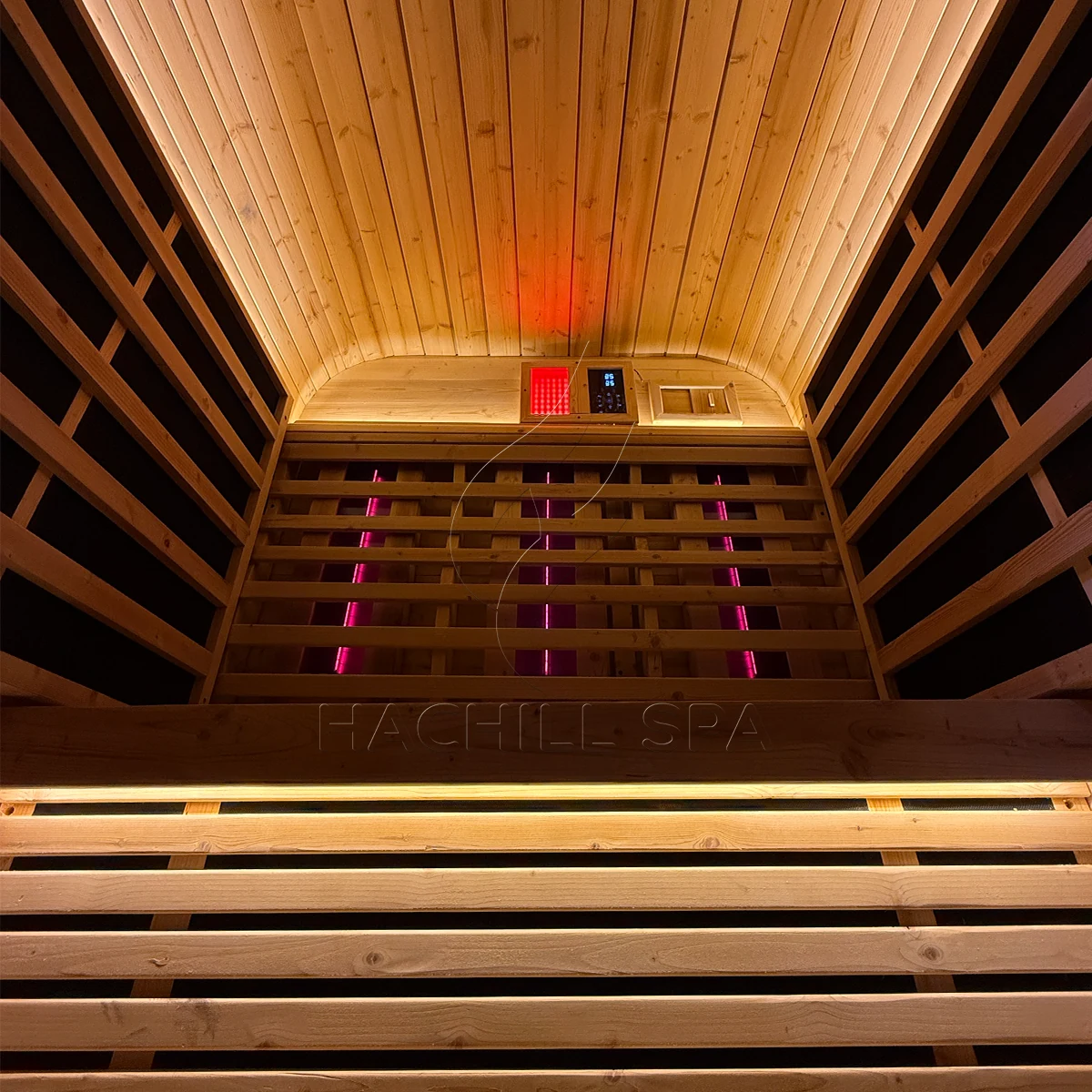

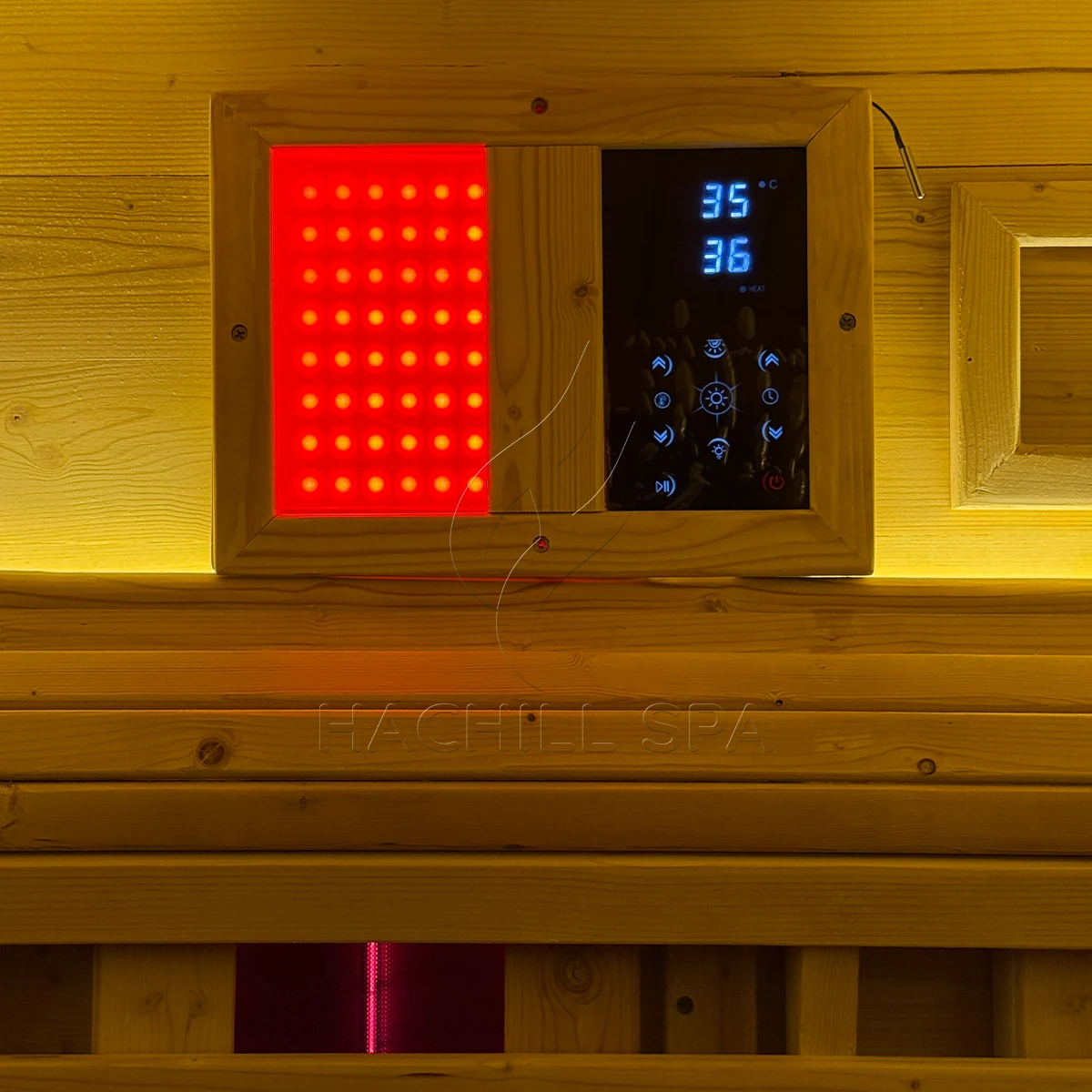

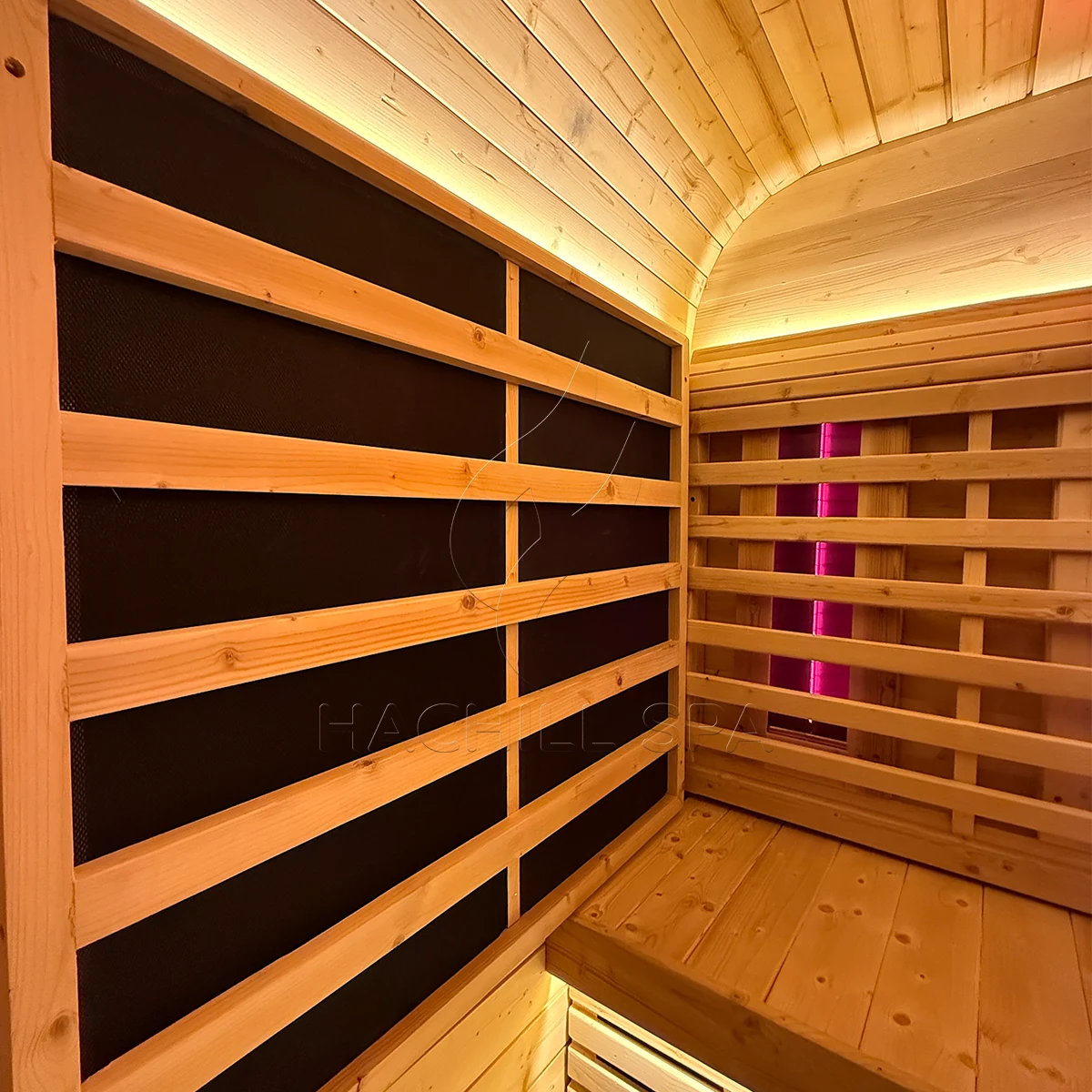

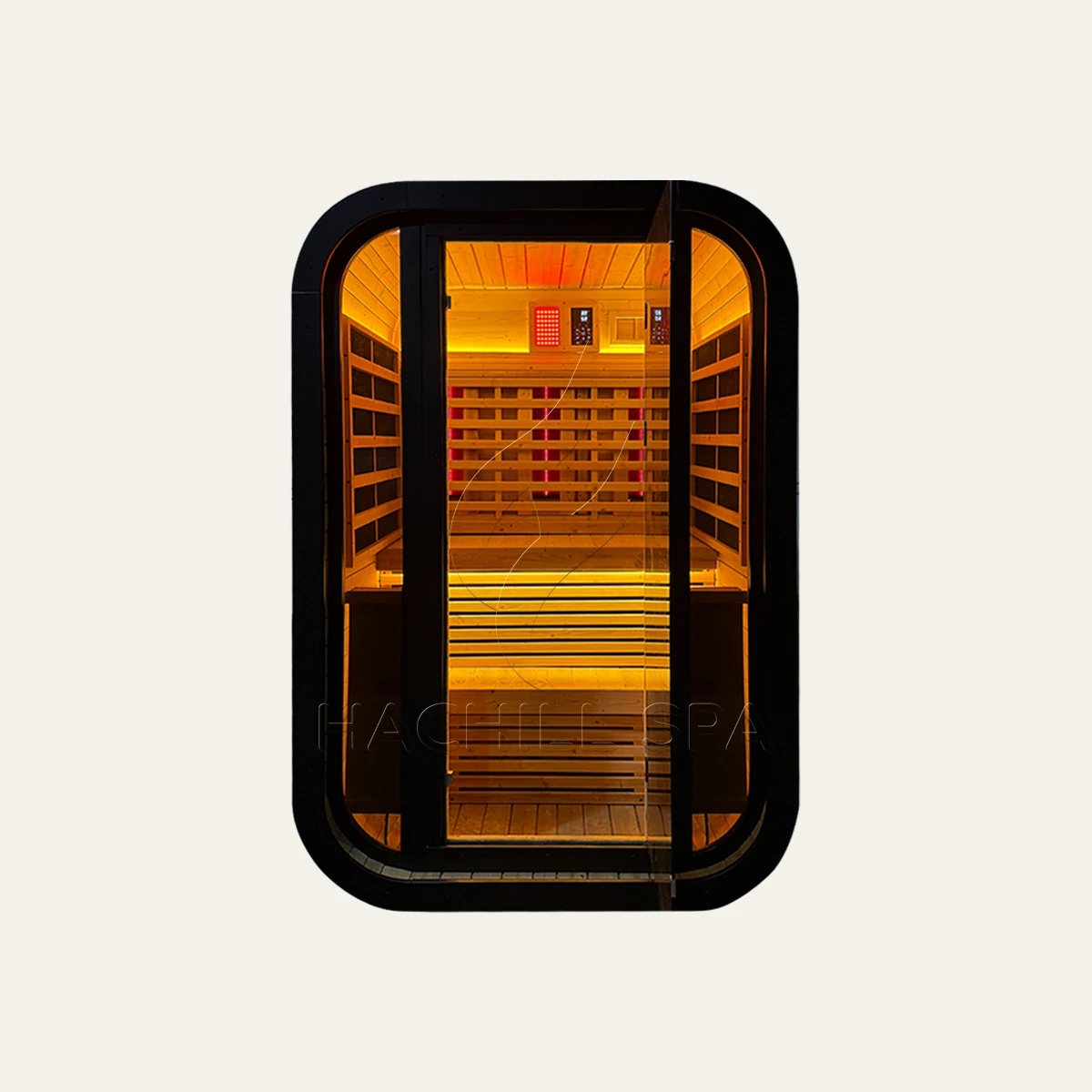

The retained CS29 image set is product evidence rather than lifestyle context: front view, interior bench arrangement, infrared-panel details, ceiling/interior view, side-panel layout, control/emitter detail, and the dimension drawing.
Use those images to inspect the photographed configuration and the relationship between the compact enclosure, bench area, and visible infrared-related hardware. They do not define the infrared technology, per-panel wattage, panel count for every order, final control package, stove model, electrical architecture, material specification, or operating mode.

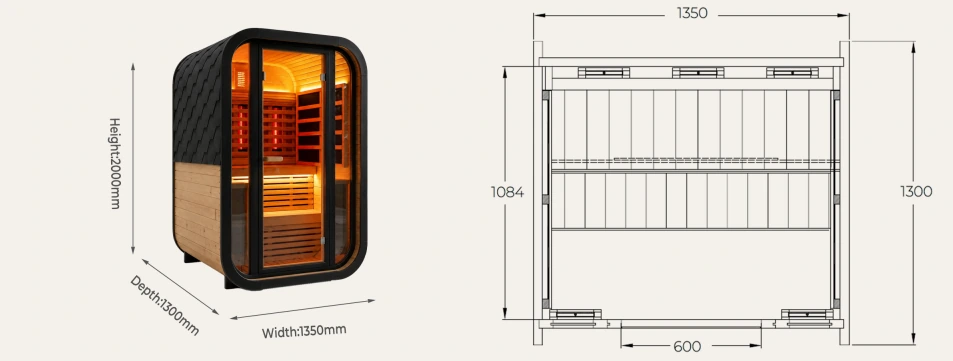

The dimension drawing supports early comparison; the approved order drawing remains the production and installation reference.
For the CS29 RFQ, state the decision first: is Hybrid a required project feature, or is same-size CS04 also acceptable?
Then provide destination, quantity, intended users, available site area, delivery access, foundation/base conditions, outdoor exposure, intended stove/infrared use, expected operating modes, electrical supply, control requirements, ventilation/site constraints, drawing requirements, branding/packaging needs, and required documents.
If 1–2 Person is too small but Hybrid remains required, ask to compare CS23 while keeping the 1300 mm external product depth in view. The quotation should confirm supplied heating equipment, permitted operating modes, controls, and electrical requirements without converting the 4.5 kW and 3250 W references into one system figure.
