ID14L is the Traditional Indoor Sauna listed in HACHILL’s indoor range. It is listed with external dimensions of W1600 × D1600 × H2050 mm, internal dimensions of W1510 × D1510 × H1960 mm, a 3–4 person catalog capacity and 6 kW recommended heater power.
IR13 is also positioned in the 3–4 person class, so capacity alone does not decide between the two. Choose the heating system first. If Traditional is required, then confirm that the ID14L enclosure, heater interface, ventilation path and service requirements can work inside the finished room.
Model
ID14L
Product Type
Indoor Traditional Sauna
Catalog Capacity
3–4 Person
Recommended Heater Power
6 kW
External Dimensions
W1600 × D1600 × H2050 mm
Internal Dimensions
Current Range Role
Current standard Traditional Indoor model
Drawing Status
Final approved order drawing controls production and installation details.
The 3–4 person figure is a catalog capacity classification, not a guarantee of identical seating comfort, bench use or throughput.
The 6 kW figure is the current recommended heater-power reference. It does not by itself confirm the exact heater model, heater inclusion, brand, destination voltage, controls, final electrical protection, heater clearances or ventilation arrangement. Confirm those items for the ordered Traditional sauna system.
ID14L and IR13 share the same 3–4 person marketed capacity class, so occupancy does not choose between them. ID14L uses Traditional indoor heating; IR13 uses Infrared indoor heating. Select the heating system before comparing room and system interfaces.
| Comparison | ID14L | IR13 |
|---|---|---|
| Heating Type | Traditional | Infrared |
| Catalog Capacity | 3–4 Person | 3–4 Person |
| Heat Context | 6 kW recommended Traditional-heater reference | Infrared emitters |
| First Buying Question | Is Traditional required? | Is Infrared required? |
Wattage alone is not a valid comparison between these heating systems. Nominal power values from different heating-system contexts do not indicate better performance, faster heating, greater capacity, comfort or efficiency.
Choosing ID14L means reviewing a room-and-heater system, not only a cabin. The enclosure can fit physically while heater, ventilation, control or service interfaces remain unresolved.
Use 6 kW as the current recommendation only. Confirm the selected heater, position, required clearances and service needs for the actual project.
Resolve the ventilation path as part of the finished-room plan, including applicable inlet/outlet positions and their relationship to the Traditional heater system.
Confirm controls and local electrical requirements for the ordered system.
Preserve access around the heater, controls and other service points. A cabin that fits the room can still leave maintenance or commissioning access unresolved.
Screen W1600 × D1600 × H2050 mm against the finished room width, depth and height before treating ID14L as a fit.
Review doorways, corridors, turns, stairs or level changes and the assembly path. The nominal footprint alone does not guarantee that the cabin can reach the room.
Reserve project-specific space for the heater interface, ventilation, controls, electrical connection and future service access.
Use 1600 × 1600 mm as a product-envelope screen, not as the complete room-size requirement. Final installed space depends on the approved system and site interfaces.

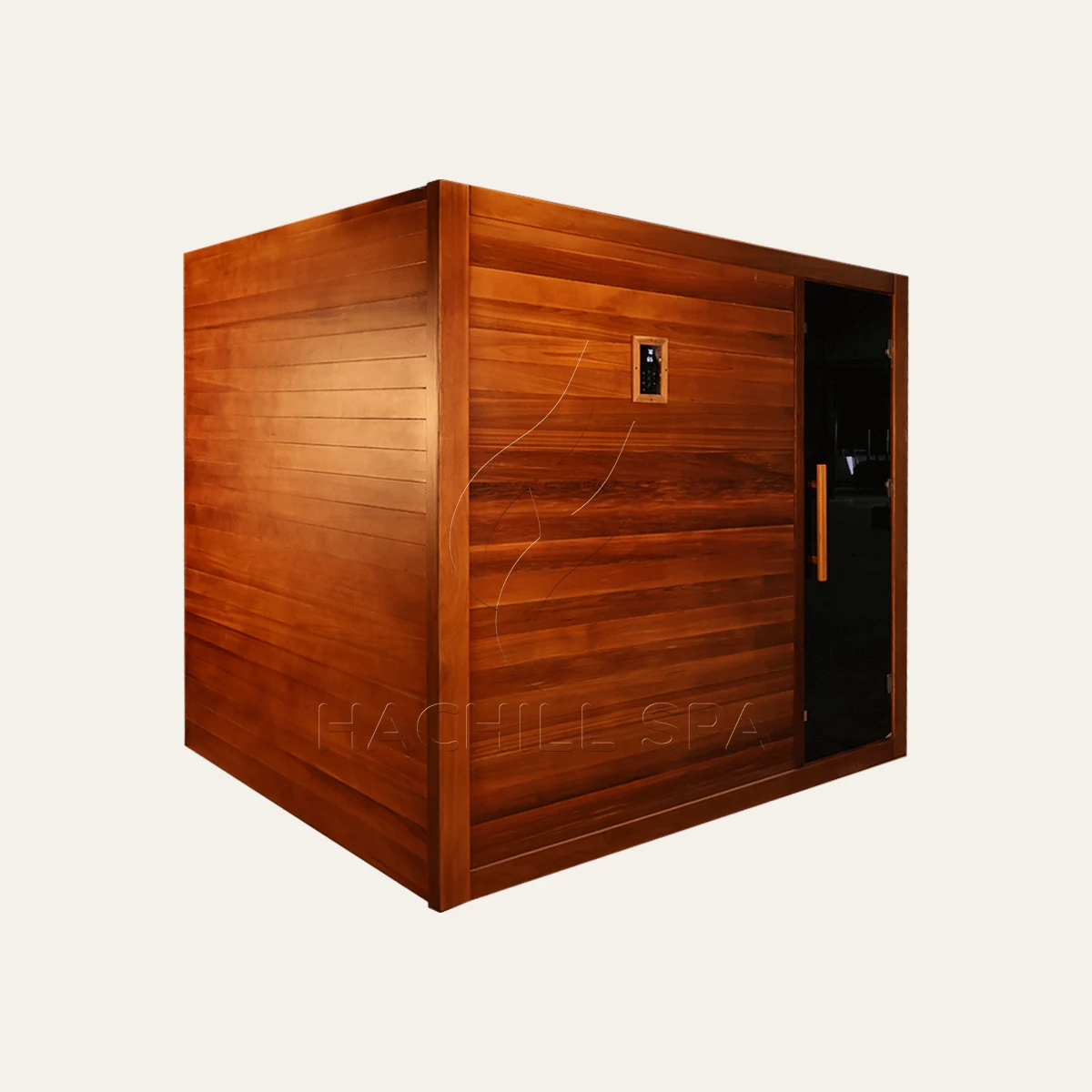

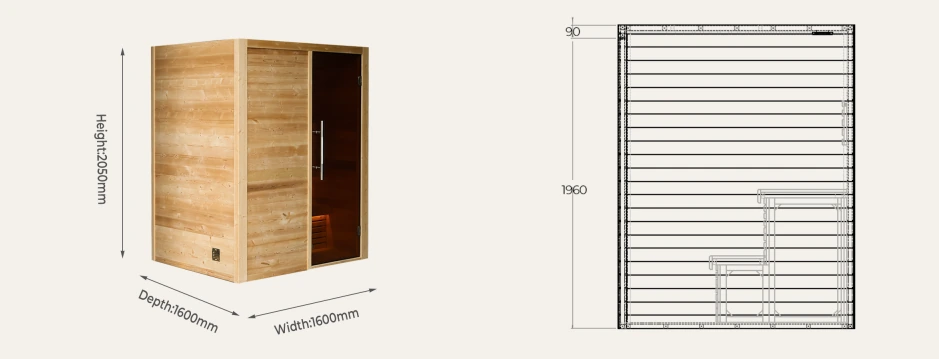

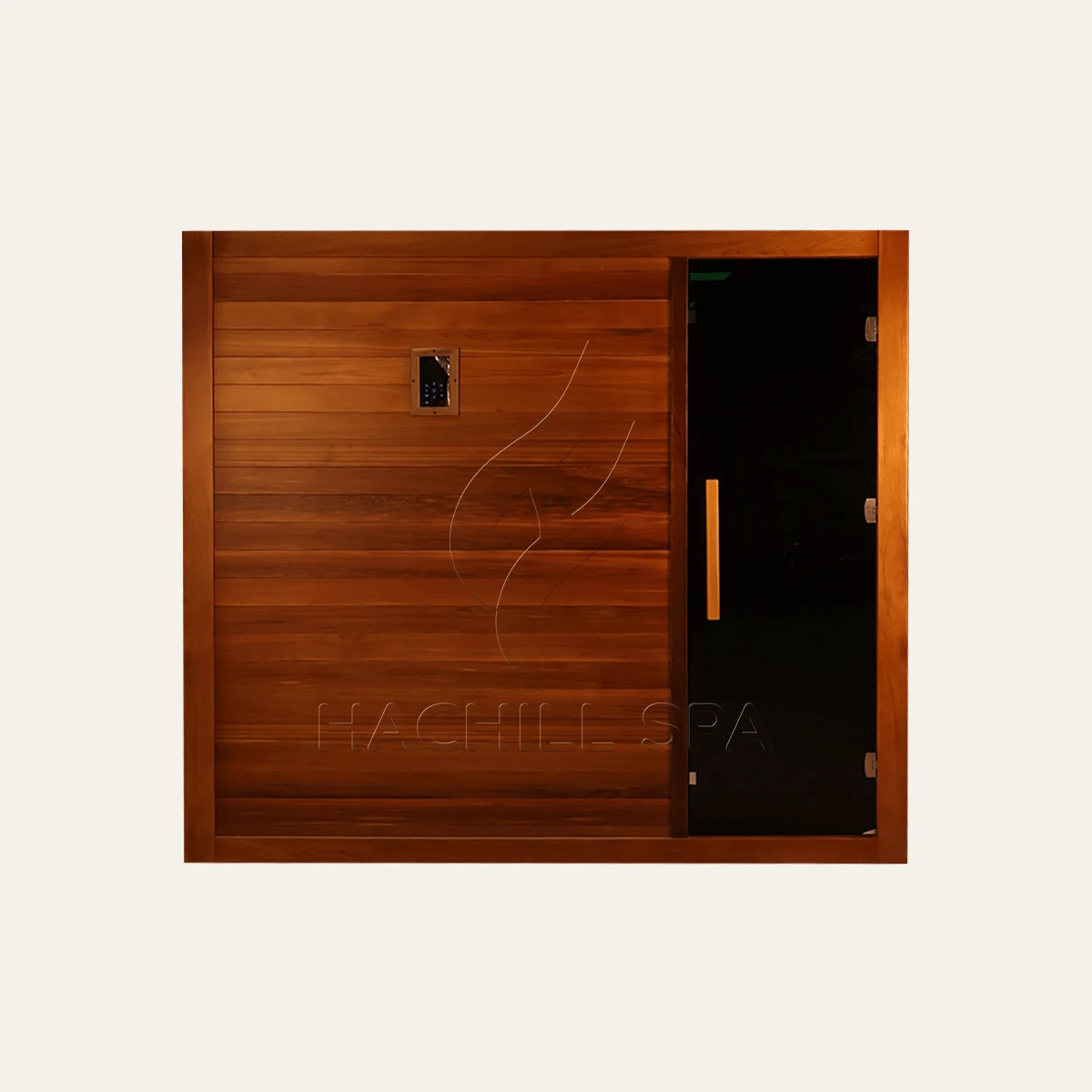

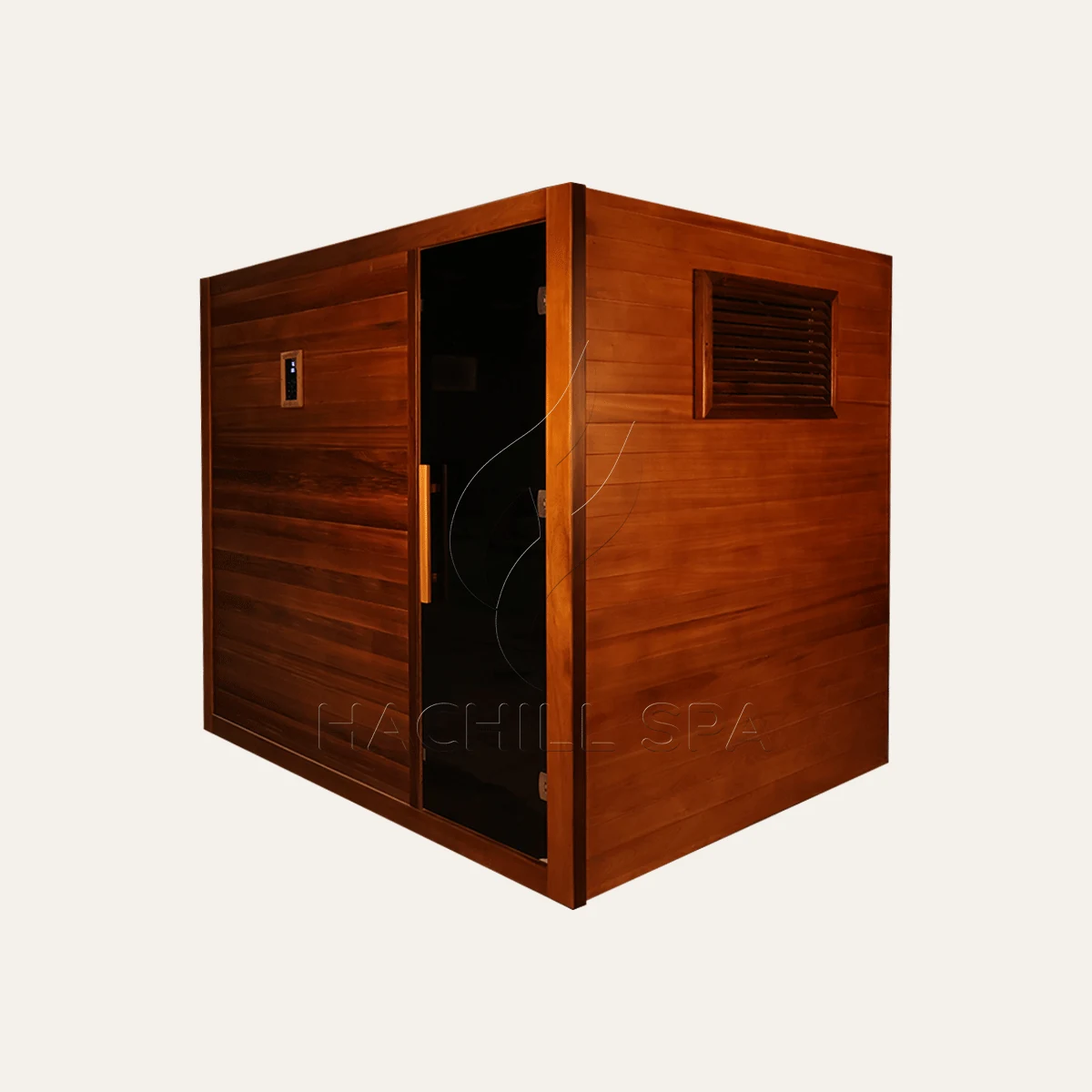

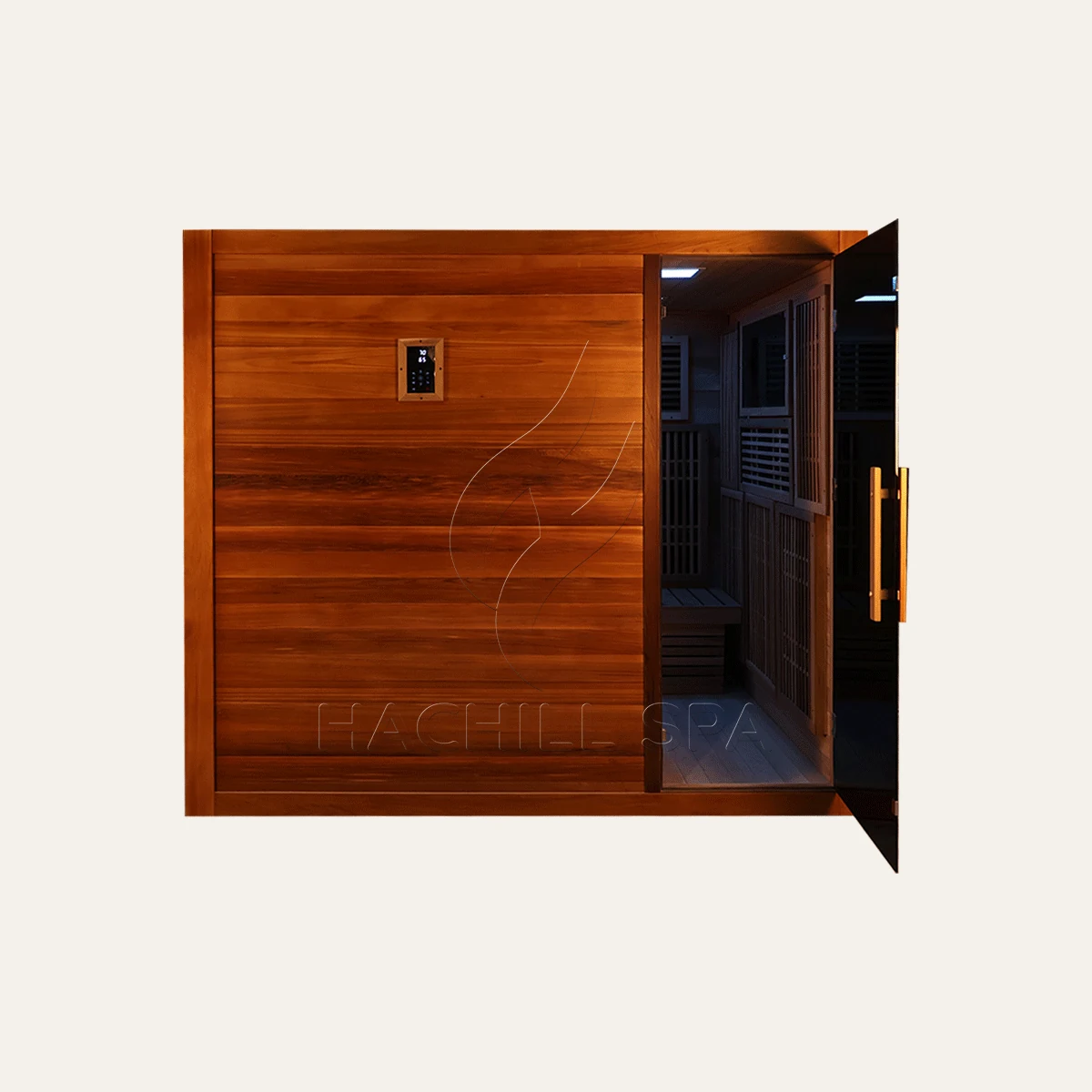

Use the exterior views and dimension drawing on this page for enclosure form and room-fit review. Use only interior photographs or drawings matched to the quoted configuration to define the Traditional heating layout.

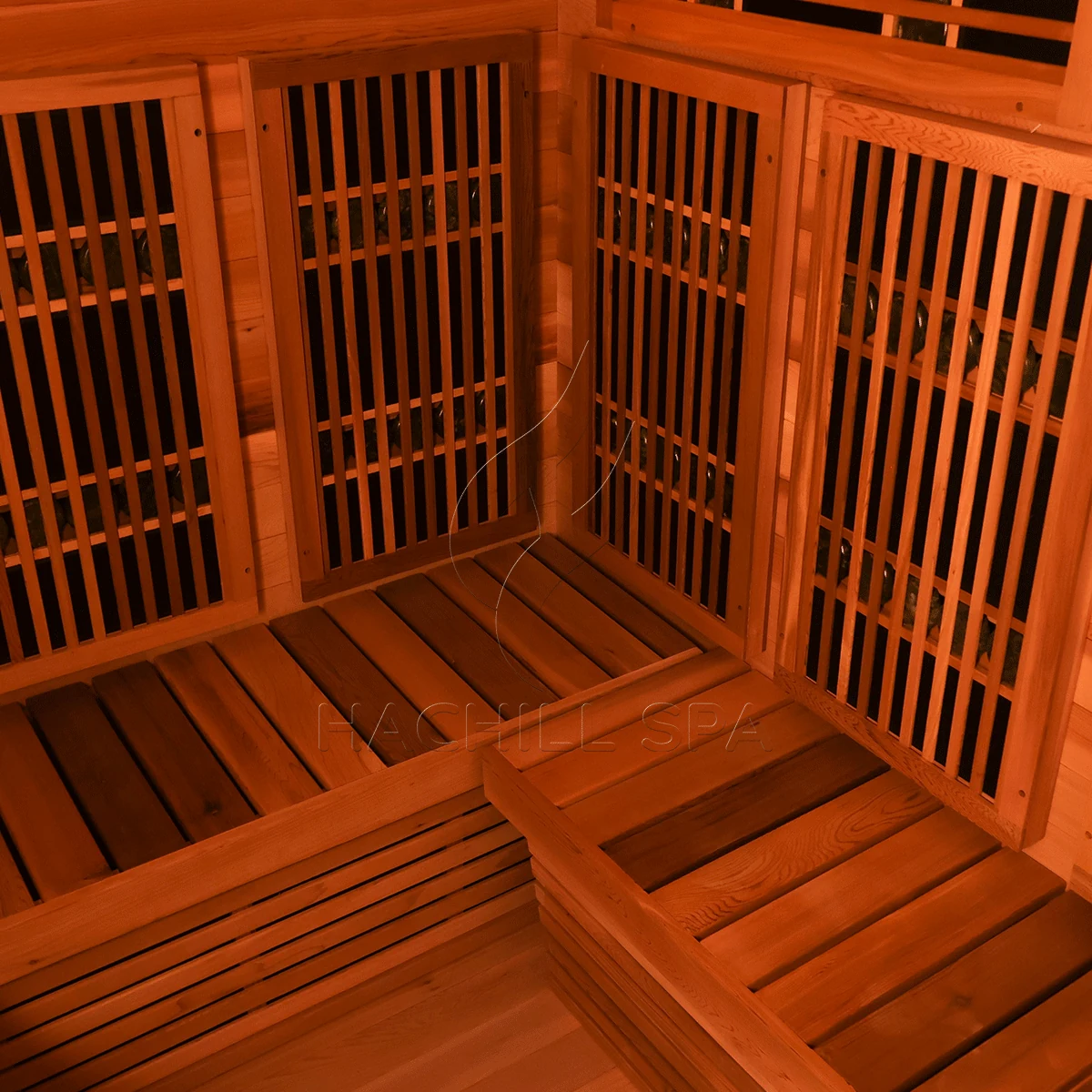

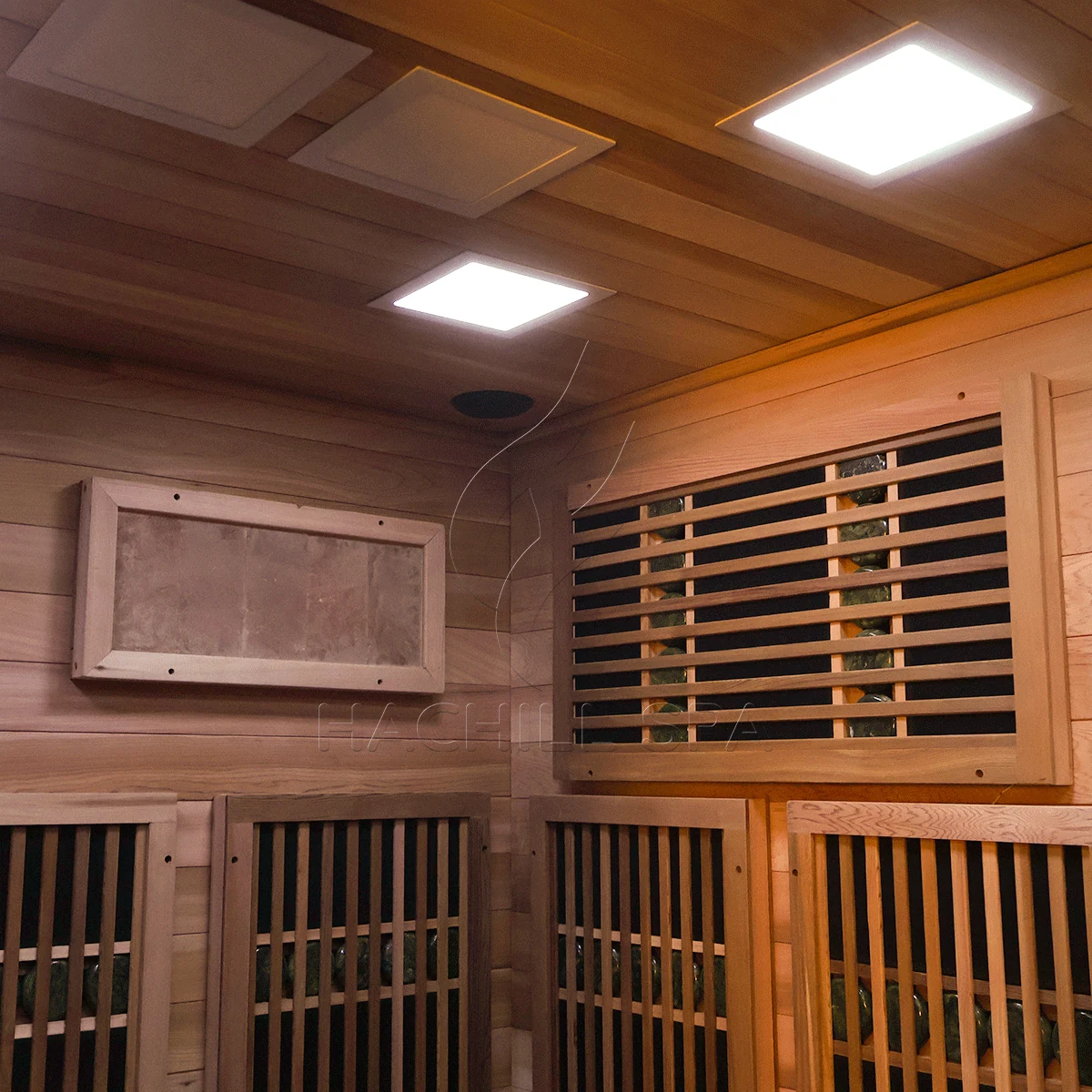

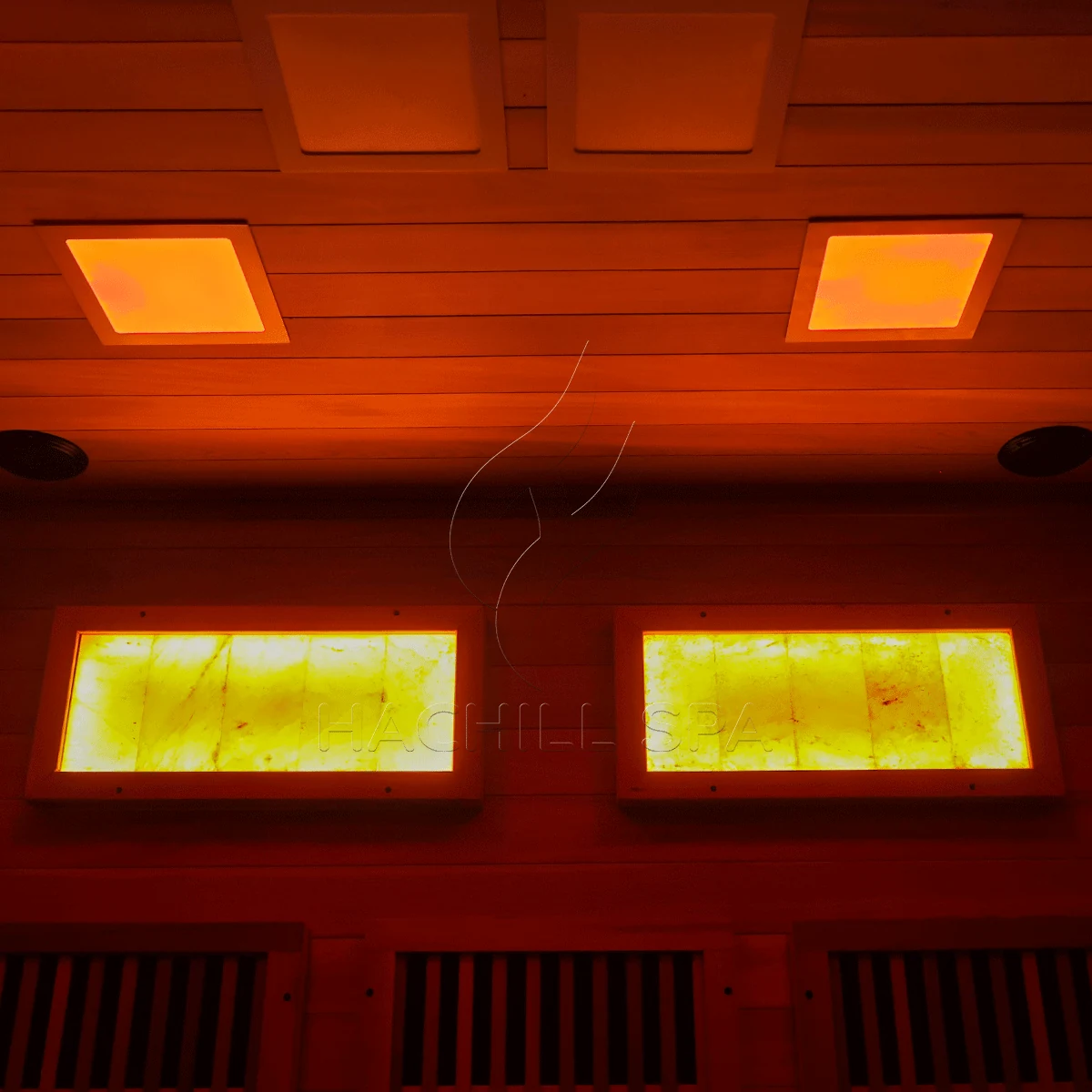

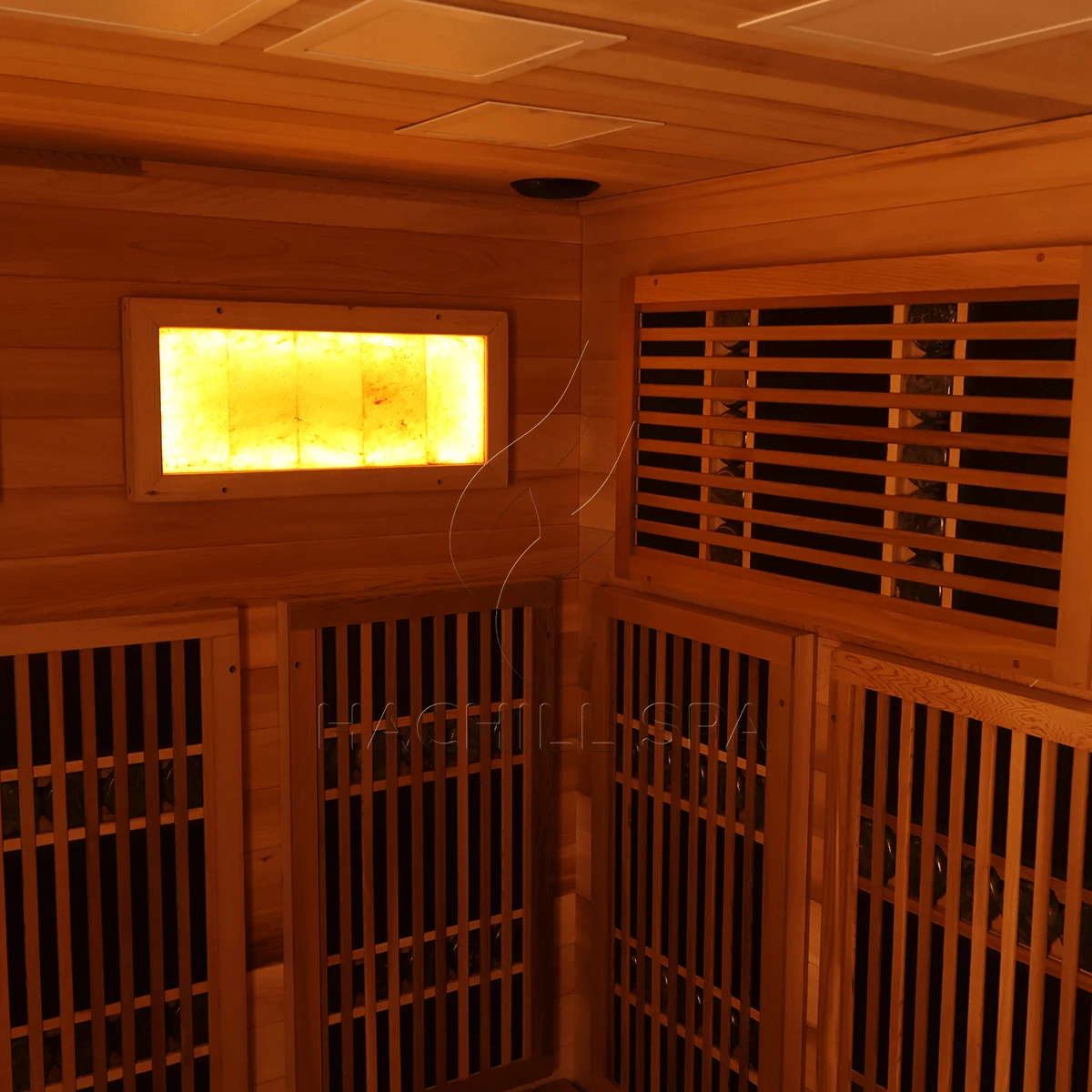

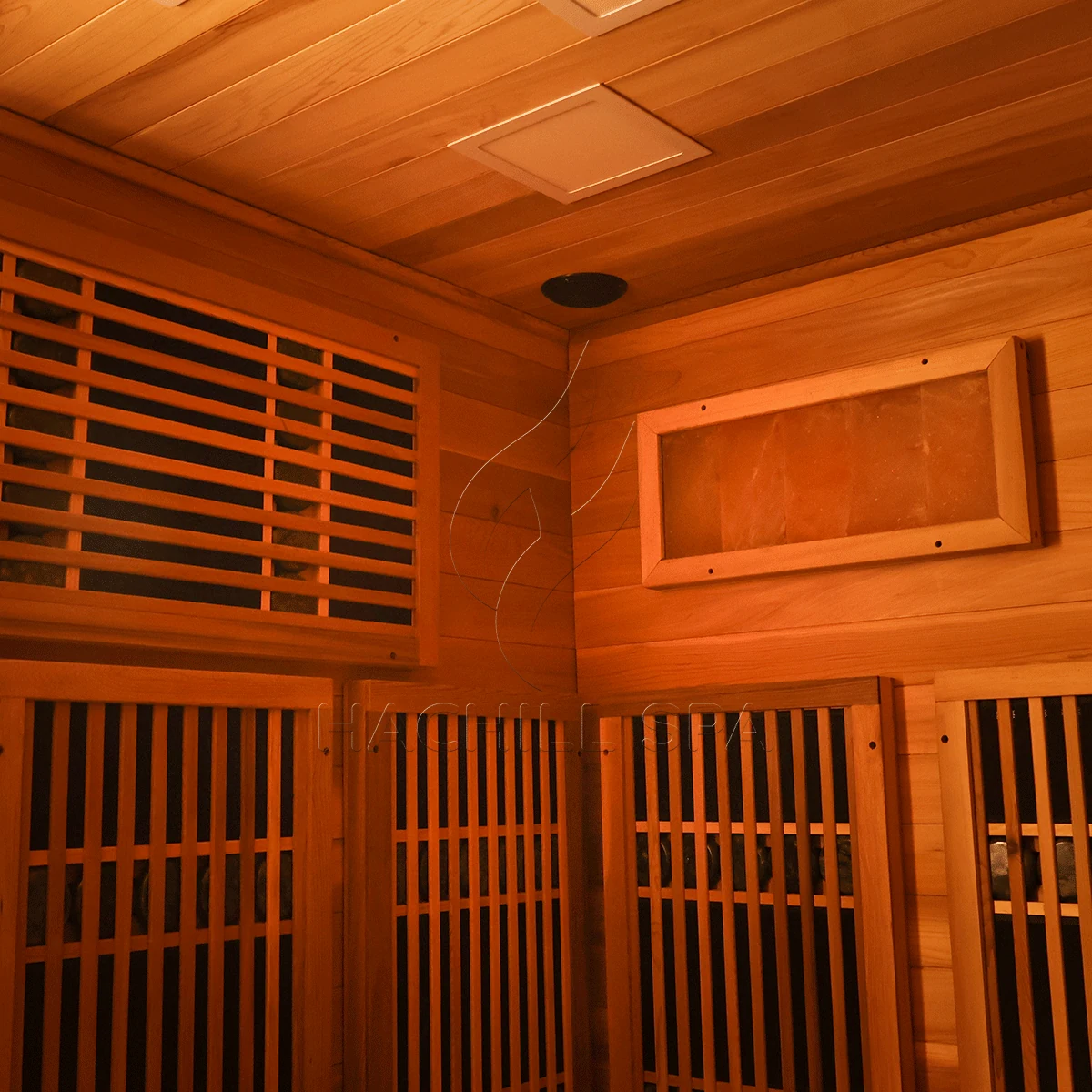

Before order approval, request interior photographs and/or drawings that are explicitly matched to the quoted ID14L Traditional configuration. The approved package should confirm the interior arrangement and the project-specific heater, ventilation, controls and service interfaces that matter to installation.
Do not specify Infrared equipment, emitter layouts or Hybrid heating from imagery that has not been reconciled to the quoted ID14L Traditional configuration.
Start the enquiry by confirming whether the project specifically requires Traditional indoor heating. Because IR13 also occupies the 3–4 person class, compare the heating system before treating either model as selected.
For quotation and technical review, send destination, quantity, intended users, finished room width/depth/height, doorway and access path, available heater-side space, ventilation constraints, electrical supply information, controls requirements, service-access needs, approved-drawing requirements and any branding or documentation requirements.
The quotation should confirm the actual heater, controls, electrical requirements and ventilation-related interfaces for the ordered configuration rather than treating the 6 kW recommendation as a complete supplied-system specification.
Compare the indoor heating system first. The most relevant alternatives are IR13 for the same 3–4 person class and IR12 for a smaller 1–2 person Infrared model.
