How to Build a Sauna: Planning, Insulation, Ventilation and Heater Selection

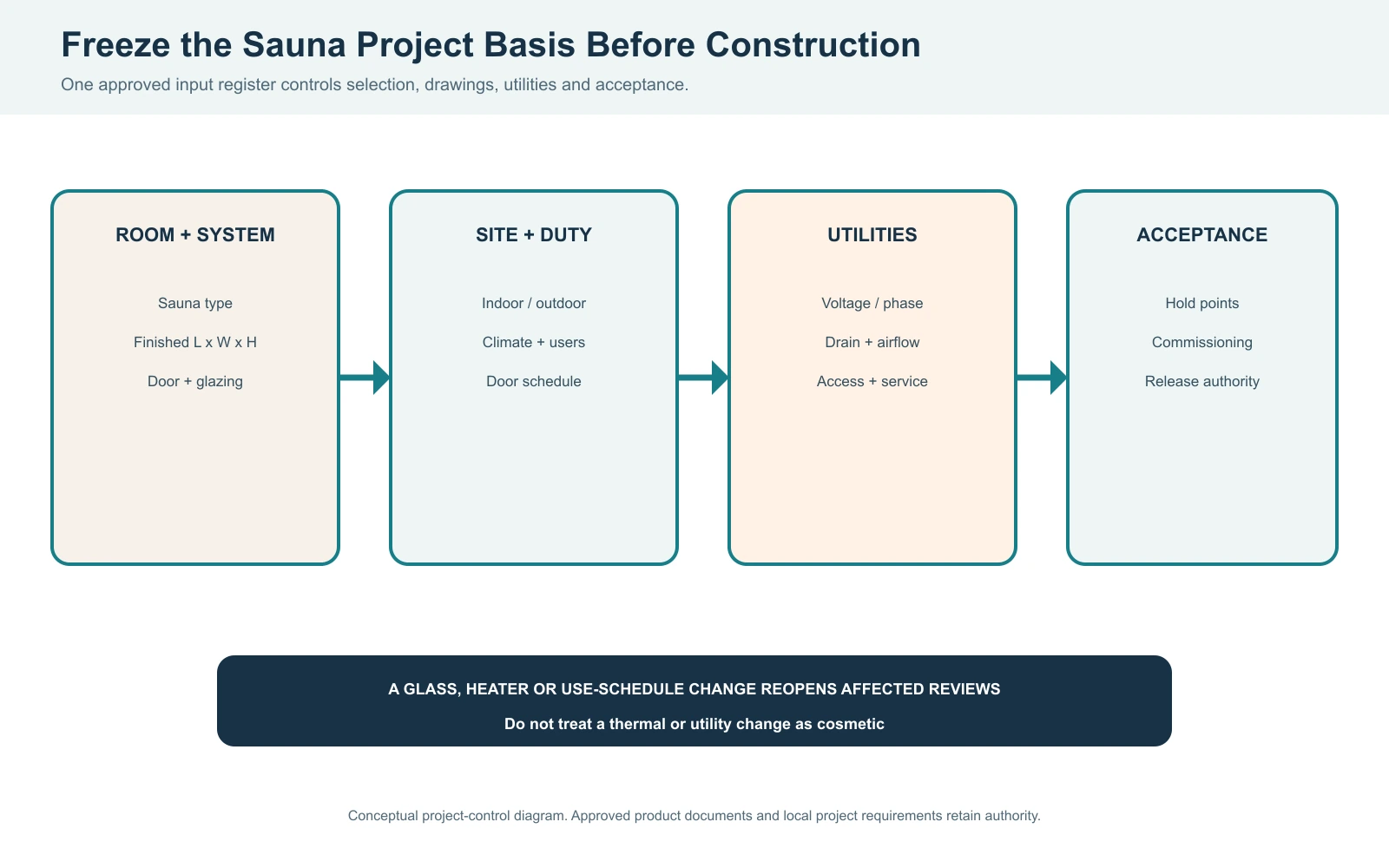

Step 1: Freeze the Sauna Project Basis Before Drawing the Benches

A build becomes unstable when these inputs remain verbal. Use one revision-controlled basis sheet and identify who can approve changes. If a glass wall, door type, heater family or use schedule changes after selection, reopen affected calculations, electrical loads, clearances and drawings instead of treating the revision as cosmetic.

The general guide stops at coordination. A qualified project team must resolve structural capacity, fire separation, accessibility, electrical work, solid-fuel chimney design, waterproofing and permits for the actual jurisdiction. Product instructions define the approved equipment configuration; the article cannot replace them.

Step 2: Calculate Finished Room Volume, Then Record Heater-Load Inputs

Start with finished internal dimensions, not exterior cabin dimensions. For an illustrative rectangular room measuring 2.4 m long, 2.0 m wide and 2.2 m high, geometric volume is 2.4 × 2.0 × 2.2 = 10.56 m³. This number is not a heater recommendation. It is the first input to the selected heater manufacturer’s method.

Glazing, masonry, uninsulated surfaces, outdoor winter conditions, ventilation and repeated door openings can increase heat demand. Different heater suppliers may use different adjustment methods. Record the exact manual or selection document and its revision. Do not combine a rule from one heater with another product, and do not convert a controller maximum into a promised room temperature.

Step 3: Prepare the Base, Floor, Water Management and Delivery Access

A floor drain is not automatically required for every residential cabin, but the project still needs a declared cleaning and water-management method. A commercial room exposed to wet cleaning, frequent water use or public-health procedures normally demands a more formal drainage and waterproofing review. Coordinate the floor-to-wall transition before timber lining hides it.

For outdoor cabins, separate the sauna’s interior vapor control from the exterior weather and drying strategy. Roof pitch, flashings, ground clearance, wind exposure and foundation movement are building-envelope questions. A durable interior lining does not compensate for water entering behind the exterior cladding.

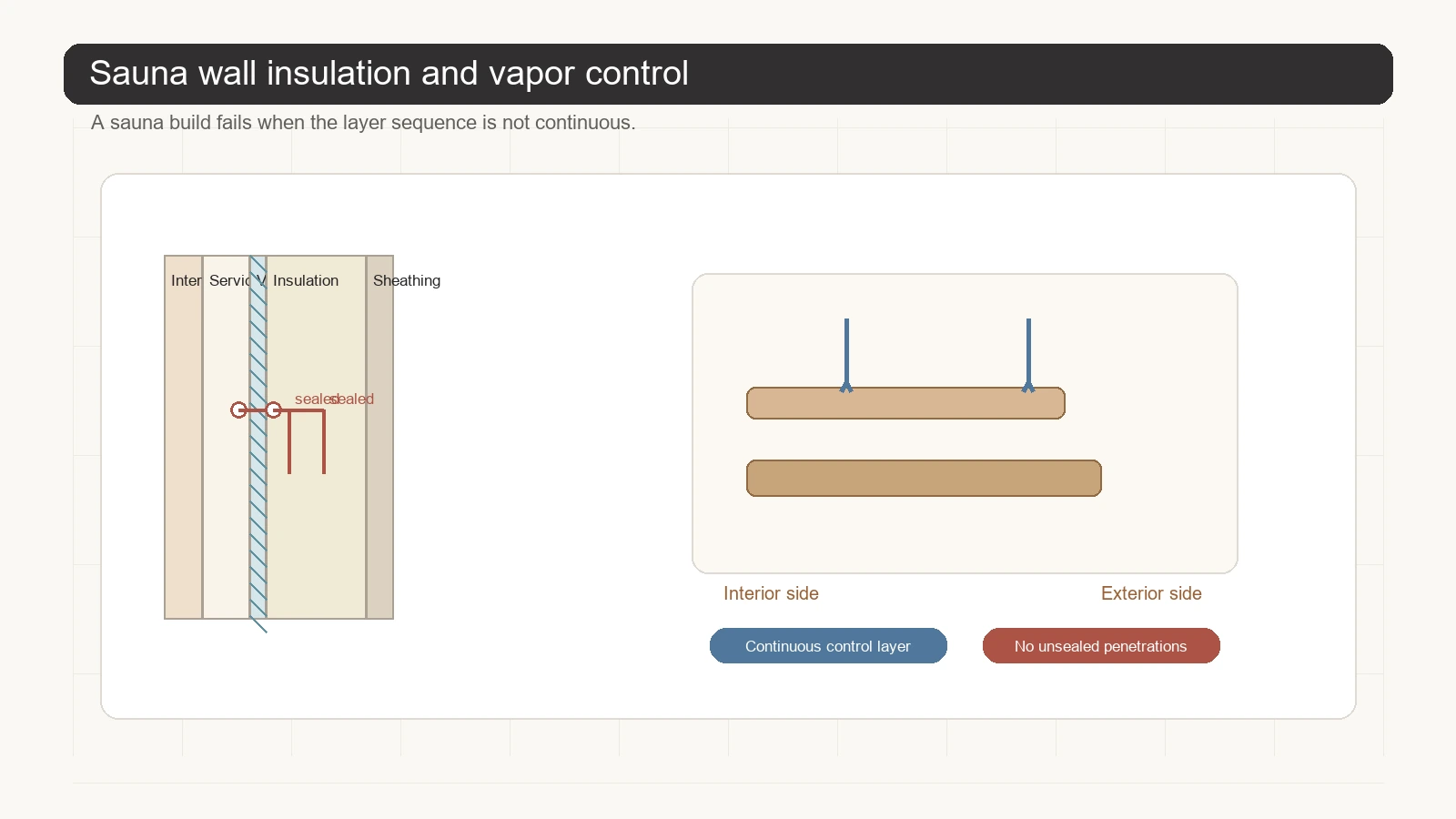

Step 4: Frame the Room, Then Coordinate Insulation, Air and Vapor Control

Frame the room from the issued finished dimensions and provide deliberate backing where benches, heater guards, glazing channels, doors or serviceable equipment will transfer load into the structure. Do not assume interior lining can carry these loads. Before the wall or ceiling is closed, confirm that the framing, openings and backing match the final equipment and interior layout.

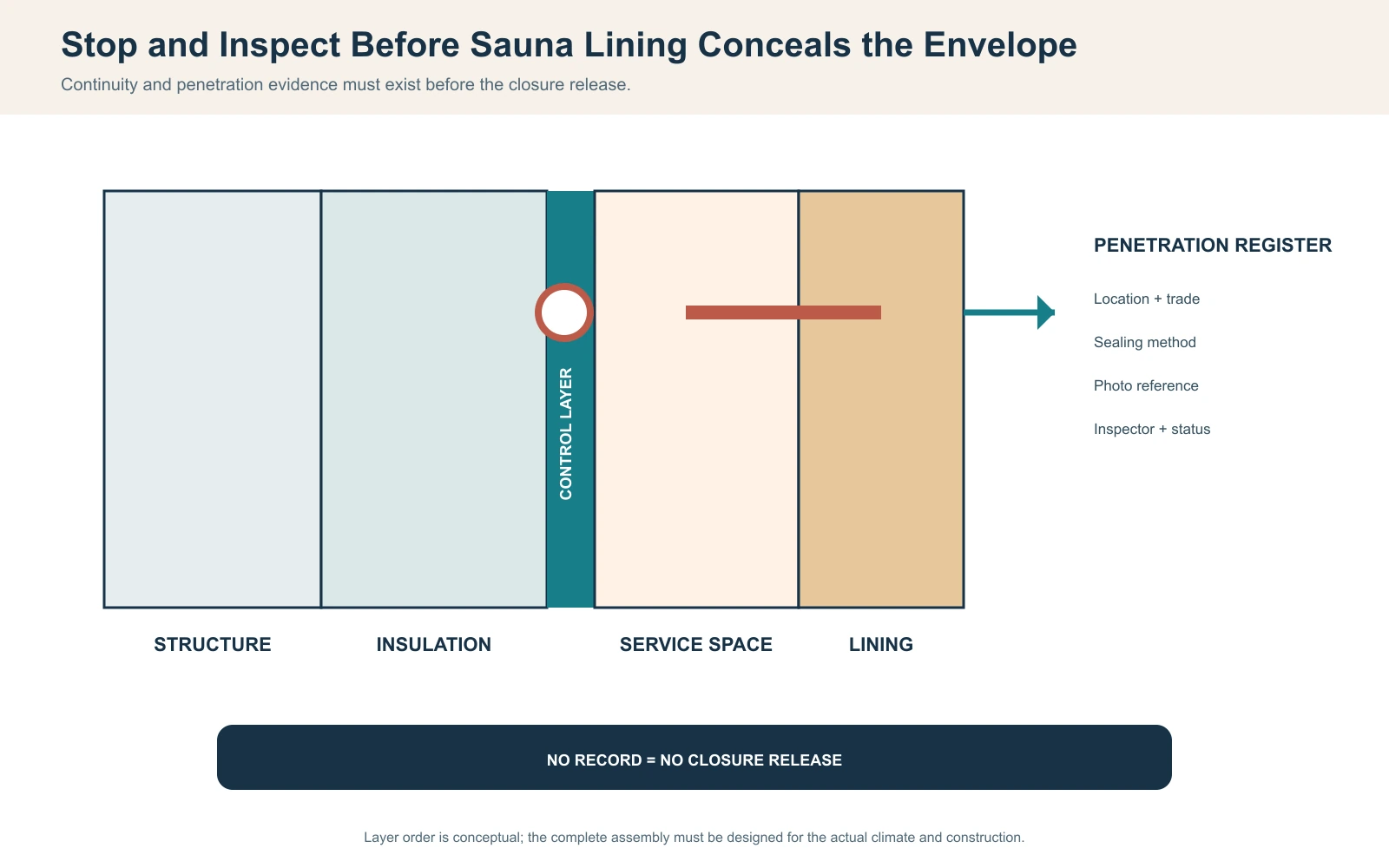

There is no single wall assembly that is correct for every climate and host building. Continuity matters more than a marketing label. Ceiling-to-wall junctions, door frames, glazing channels, cable routes, lights, controls and sensors are common weak points. Maintain a penetration register: identify the opening, location, trade, sealing method, inspection status and photo reference. Unknown openings should block closure.

Materials hidden inside the assembly must be suitable for their expected temperature and moisture exposure. Adhesives, membranes, cable insulation, fixtures and finishes require product-specific confirmation. Avoid unsupported claims that ordinary construction products are automatically safe simply because the exposed face is timber.

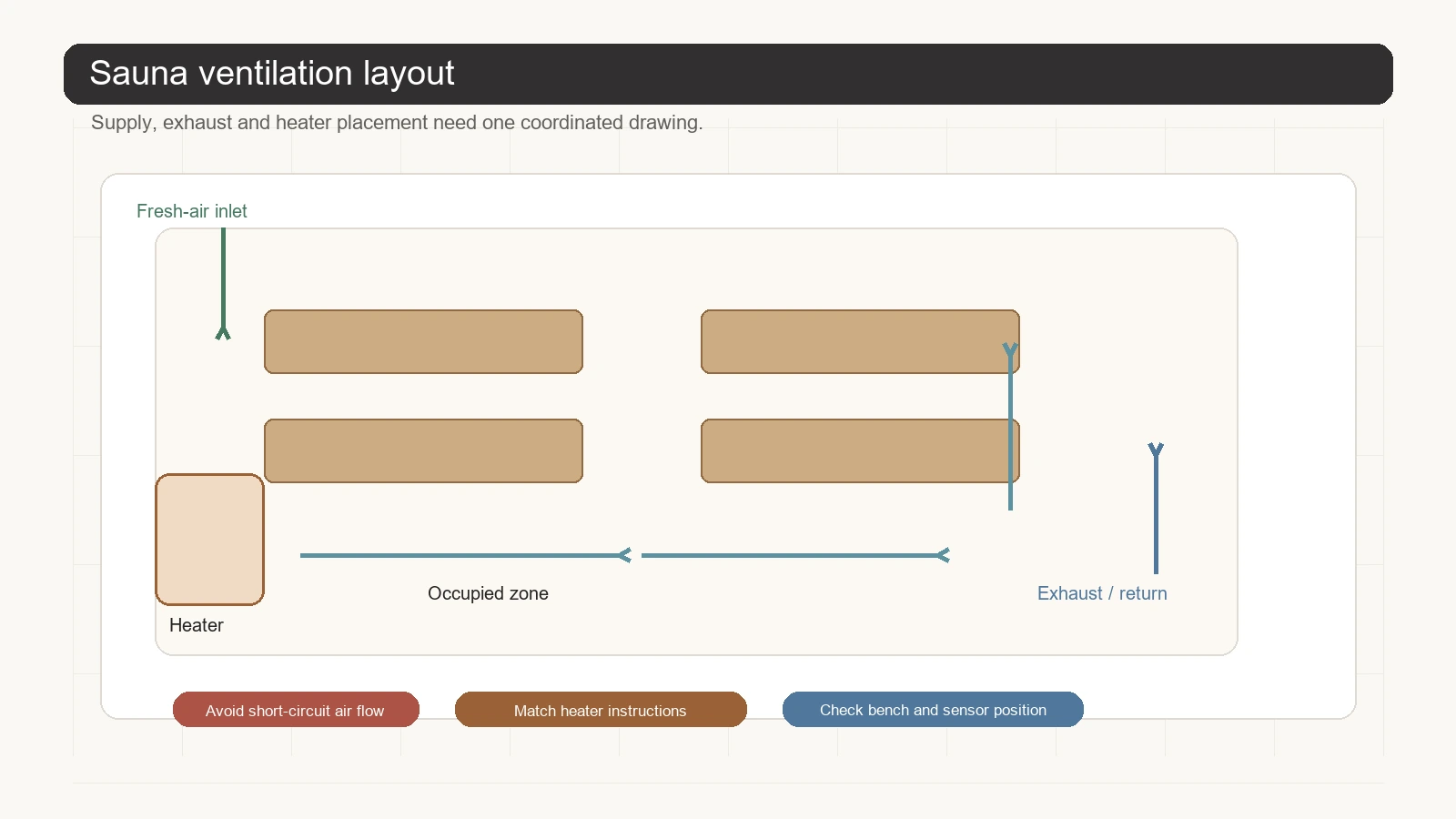

Step 5: Rough-In Ventilation and Service Routes Before Timber Lining

Before lining, freeze the intended air-supply and exhaust path together with any fan, heater, controller, sensor, lighting and service routes that must pass through the enclosure. The exact vent position is not universal: it depends on the heater/control system, whether ventilation is mechanical or passive, room geometry and the approved installation method. Coordinate penetrations now so late drilling does not bypass the air/vapor-control layer or place airflow where it interferes with a temperature sensor.

Opening positions differ by heater and ventilation method. Follow the approved equipment and room design instead of copying a generic diagram. A supply placed beside an exhaust may satisfy a nominal opening-area requirement yet short-circuit fresh air without conditioning occupied zones. Conversely, excessive uncontrolled exhaust can increase heat loss and impair recovery.

Drying is an operating requirement. The handover should specify whether fans continue, doors remain open or closed, surfaces are wiped and when the room is released for cleaning. A lower bench that stays damp or a wall cavity showing condensation is not solved by raising the heater setpoint.

Step 6: Lock the Heater, Guard, Sensor, Controller and Utility Supply as One System

Freeze the heater model before finalizing bench edges, guards, wall finishes and service penetrations because the required clearances and sensor position are model-specific. Where rough-in can occur before the final heater is mounted, protect the approved routes and backing so the completed lining does not force an improvised cable path, sensor location or guard geometry later.

Do not move a sensor to make a reading look more favorable or bypass a high-limit device during troubleshooting. Sensor placement is part of the approved control logic. If the displayed value and occupied-zone readings disagree, preserve both, confirm location and instrument method, then diagnose air path, heat loss and configuration.

Fixed wiring, circuit protection, bonding where applicable and solid-fuel chimney work are safety-critical tasks that must follow the selected equipment instructions and the requirements that apply at the installation site. The project must use the requirements applicable to the destination market. Mentioning IEC 60335-2-53 or a local electrical rule describes a reference path; it does not prove that an unspecified HACHILL model is certified.

Step 7: Complete the Interior Fit-Out and Match It to the Construction Route

Once hidden work has been inspected, complete the service battens or cavity required by the chosen assembly, then install the sauna-suitable interior lining, benches, door and glazing. The details must preserve drainage and drying paths, keep serviceable equipment accessible and maintain the heater clearances that will apply to the selected system.

Neither route is universally better. A manufactured cabin can reduce the amount of site-built interior work, but it does not eliminate responsibility for the base, host building, utilities, weather exposure, delivery path or local approvals. A site-built sauna can integrate closely with the architecture, but only if structure, envelope, MEP and finish trades work from the same final drawings.

Step 8: Inspect Hidden Work Before It Becomes Inaccessible

A receiving inspection should compare delivered labels, heater/controller pairing, door handing, glazing protection, timber condition, hardware, documents and accessories against the approved submittal. Record damage before installation. Installing a visibly damaged component can make later transport-versus-installation responsibility difficult to resolve.

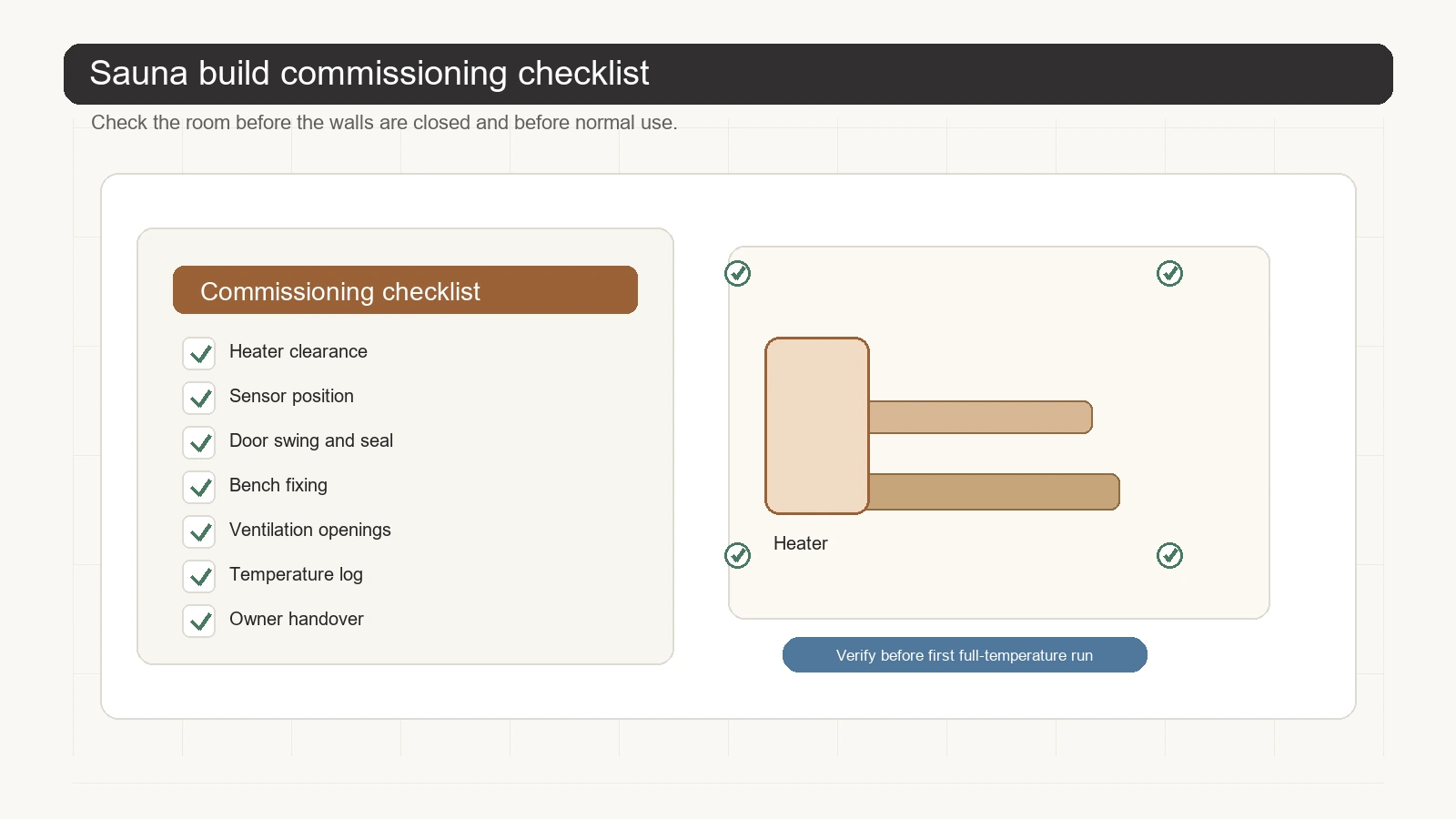

Step 9: Commission Construction, Controls, Thermal Duty and Drying Separately

A successful unloaded warm-up does not prove a commercial schedule. Record a representative door-opening and occupancy pattern, then measure recovery using the same locations and instrument method. The room should not be released merely because the controller reaches its setpoint while lower occupied zones remain outside the agreed condition.

Handover evidence should include approved drawings, model and label records, manuals, inspections, as-built penetrations, commissioning logs, cleaning/drying instructions, service access and named open items. Preserve raw readings rather than only a pass certificate.

Trace Common Sauna Build Problems to the Interface That Created Them

These are composite engineering patterns, not claims about a named customer or guaranteed diagnosis. Stop use when there is smoke, scorching, abnormal electrical behavior, damaged glass, unstable structure, unresolved protective-device operation or an unsafe clearance. Qualified personnel must determine release.

For Professional and Commercial Builds, Keep Evidence and Responsibility Clear

Responsibility is interface-specific, not a way to shift every risk to one party. The supplier cannot validate an unseen building envelope; the installer cannot invent heater certification; the operator cannot use a marketing image as commissioning evidence. Name the decision owner and required evidence in the project schedule.

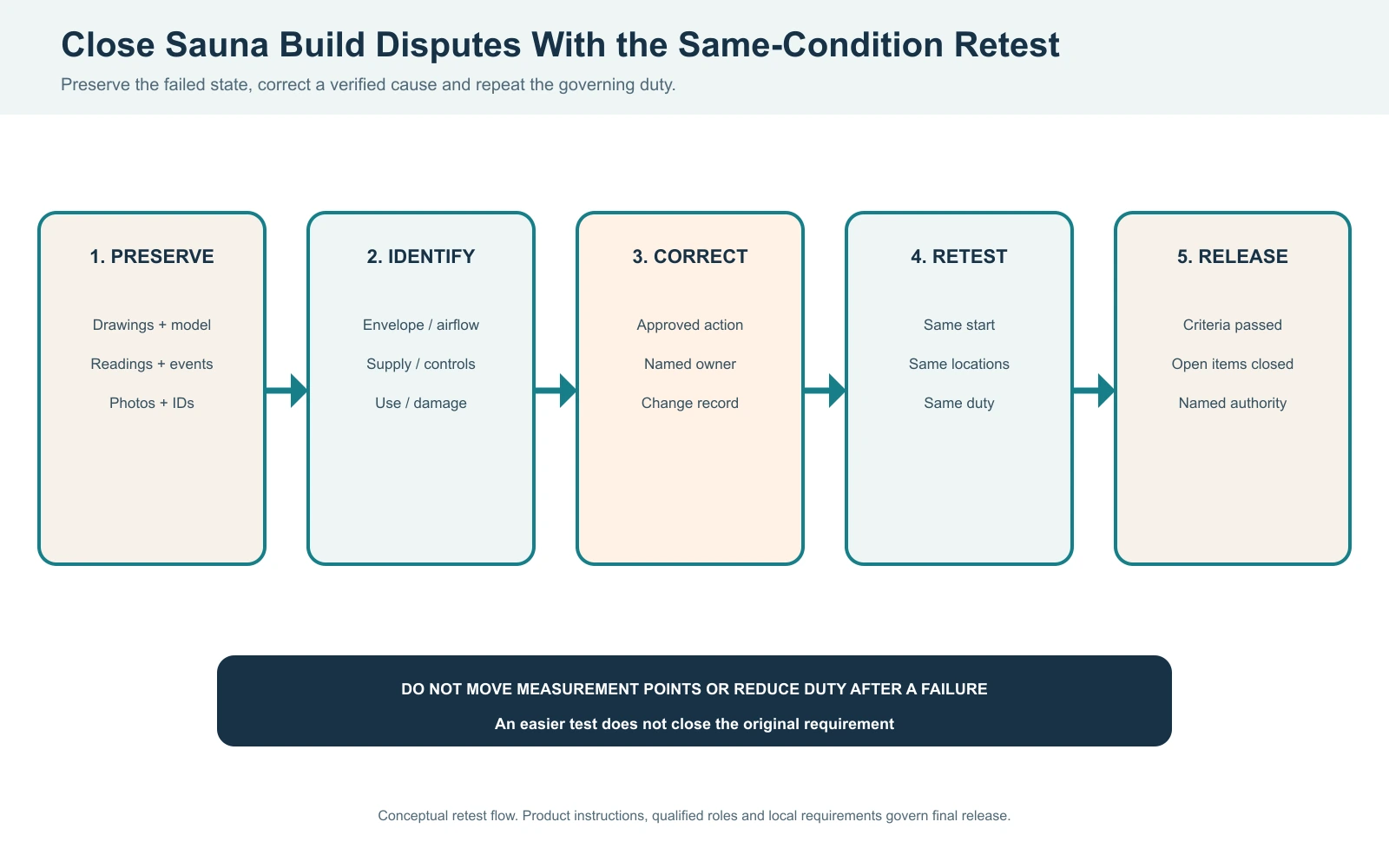

If Acceptance Fails, Correct the Verified Cause and Repeat the Same Duty

Do not erase an unfavorable curve, move measurement points or reduce the door/user schedule after seeing a failure. If the project intentionally changes the acceptance basis, document who approved the change and why. A favorable easier test does not close the original requirement.
